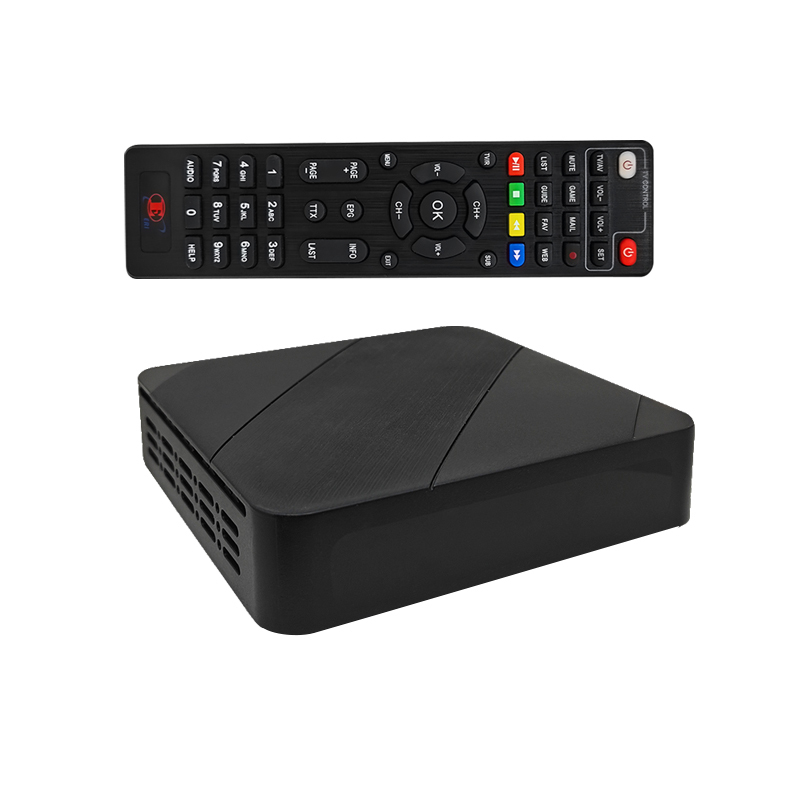

ERI Linux Set Top Box with H.265 HEVC and M3U8 Support
  • ERI Linux Set Top Box with H.265 HEVC and M3U8 Support
  • ERI Linux Set Top Box with H.265 HEVC and M3U8 Support
  • ERI Linux Set Top Box with H.265 HEVC and M3U8 Support
  • ERI Linux Set Top Box with H.265 HEVC and M3U8 Support
  • ERI Linux Set Top Box with H.265 HEVC and M3U8 Support
  • ERI Linux Set Top Box with H.265 HEVC and M3U8 Support
ERI Linux Set Top Box with H.265 HEVC and M3U8 Support

ERI Linux Set Top Box with H.265 HEVC and M3U8 Support

Place of Origin Guangdong, China
Szczegóły Produktu
Operating System:
Linux
Processor Core:
Quad Core
Processor:
GX67
Supported Resolution:
1920 x 1080
Ethernet:
1 x 10/100MBps
WiFi:
802.11n 2.4GHz
USB Host:
1*USB 2.0
Video Decoder:
H.265 HEVC/H.264/H.263/MPEG-4/MPEG-2/AVS/AVS+/VC1
Power Supply:
12V 1A
CPU Frequency:
1500DMIPS 32bit
Flash Memory:
16MB
DDR3 Memory:
128MB
Video Output:
CVBS*1, HDMI1.4
Video Format:
PAL/NTSC
Audio Decoder:
MPEG1 I/II, MP3, MPEG-4 AAC and AAC plus, DRA
Podkreślić:

Linux set top box with H.265

,

HEVC set top box M3U8

,

TV set top box with warranty

Opis produktu
Support M3U8 Xtream Linux PAL NTSC Video Format TV Set Top Box
Product Specifications
Attribute Value
Brand ERI
Operating System Linux
Features OEM/ODM
Processor Core Quad Core
Processor GX67
Supported Resolution 1920 x 1080
Ethernet 1 x 10/100MBps
WiFi 802.11n 2.4GHz
Private Mold Yes
Warranty 1 YEAR
USB Host 1*USB 2.0
HD H.265/HEVC
Video Decoder H.265 HEVC/H.264/H.263/MPEG-4/MPEG-2/AVS/AVS+/VC1
CEC Function Support
Power Supply 12V 1A
Language Multilateral Languages
Product Overview
ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 0
Technical Specifications
CPU

Main Chip: GX67

O.S: Linux

CPU Frequency: 1500DMIPS 32bit

Flash: 16MB

DDR3: 128MB

System

IPTV protocol: HLS(M3U8), UDP, RTP, RTSP, RTMP, HTTP

Content Protection: HDCP, Macrovision 7.1, CGMS-A

DRM: NSTV

Video Decoder

Video Decoder: HEVC/H.265, H.264, MPEG-4, H.263 P3, AVS, AVS plus, MPEG-2, MPEG-1

Video Output: CVBS*1, HDMI1.4

Video Format: PAL/NTSC

Aspect Ratio: 4:3/16:9

Resolution: 1080p, 1080i, 720p, 576p, 480p, etc

Audio Decoder

Audio Decoder: MPEG1 I/II, MP3, MPEG-4 AAC and AAC plus, DRA

Audio Mode: Left/Right/Stereo

Sampling Frequency: 32KHz, 44.1KHz, 48KHz

Hardware Features
Front Panel

LED Indicator: Dual Color LED (Green for working, Red for Standby)

IR Sensor: 38KHz

Rear Panel

RCA Output: 1*AV Jack 3.5

USB2.0: 1

HDMI: HDMI1.4

Power Adaptor Socket: 12V 1A

LAN Port: 10M/100M Ethernet/RJ-45

ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 1
Software Customization

Boot logo (1280x720.jpg) can be customized

ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 2

Home Menu (LiveTV and VOD App can be customized)

STB can play directly the channel after power on by request.

ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 3
Setup Menu Features

STALKERX API: Support login with stalker account

XTREAM CODES API: Support login with xtream account

URL ONLINE M3U: Support HTTP/HLS/UDP live stream protocol

Support online download M3U playlist from your server or USB

ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 4
ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 5 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 6 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 7 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 8 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 9 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 10 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 11

Support online download M3U/XML playlist

STB can preset the default Server URL by request

Support to control the device service through MAC ID

Support USB import channels with XML and M3U format

Support UDP import channels

ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 12 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 13 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 14 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 15 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 16 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 17 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 18 ERI Linux Set Top Box with H.265 HEVC and M3U8 Support 19
